Project Information

  • Client: Eastern Bechtel Co. Ltd. (U.K.)
  • End-User: GASCO (U.A.E.)
  • Location: Abu Dhabi (U.A.E.)
  • Design Code: ASME (Sec. VIII Div.1 & Div.2)
  • Completion:  2007

Vessel Characteristics

  • 54 Vessels / Columns
  • Total weight of 5250 t
  • Range of Vessels:
    • Weight: 3 t to 355 t
    • Length: 7 m to 44 m
    • Int. Diameter: 0.5 m to 6 m
    • Wall Thickness: 15 mm to 157 mm

Materials

  • SA 738 Gr.B
  • SA 516 Gr.65
  • SA 516 Gr.70 (HIC)
  • SS 316L Weld Overlay Application
  • Incoloy 825 Weld Overlay Application

Heaviest Vessel: Sweet Gas Knock Out Drums

(2 pcs. / 355 t / 5 m ID / 20 m Length / Wall Thickness = 157 mm)
Longest Vessel: Solvent Regenerators
(2 pcs. / 132 t / 4 m & 6 m ID / 44 m Length / Wall Thickness = 15 & 16 mm)

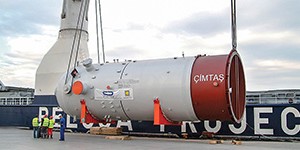

01_SWEET-GAS-KNOCKOUT-DRUMS

Sweet Gas Knockout Drums

Quantity:2
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 5 m x L 20 m
Shell/Head t:157 mm / 79 mm
Weight:355 t

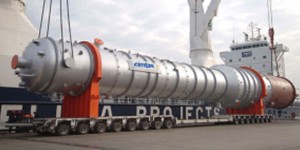

02_SOLVENT-REGENERATORS

Solvent Regenerators

Quantity:2
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 4/6 m x L 44 m
Shell/Head t:15 mm / 16 mm
Weight:132 t

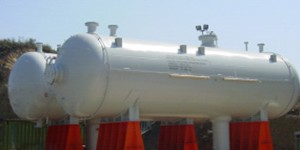

03_MP-SEPARATORS

MP Seperators

Quantity:2
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x L 13 m
Shell/Head t:50 mm / 55 mm
Weight:68 t

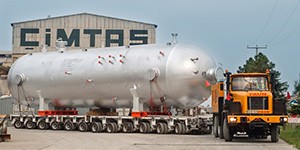

04_CONDENSATE-DRUMS

Condensate Drums

Quantity:2
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x L 21 m
Shell/Head t:133 mm / 70 mm
Weight:304 t

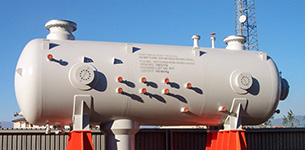

05_HP-SEPARATORS

HP Separators

Quantity:2
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 3 m x L 11 m
Shell/Head t:87 mm / 86 mm
Weight:107 t

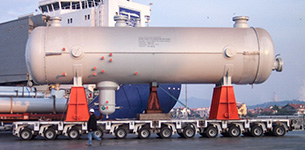

06_GAS-DEHYDRATION-SEPARATORS

Gas Dehydration Separators

Quantity:2
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x L 17 m
Shell/Head t:111 mm / 108 mm
Weight:255 t

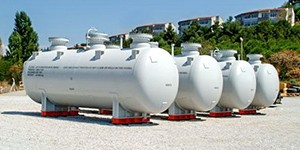

07_INJECTION-COMPRESSOR

Injection Compressor - 1st Stage Suction Scrubbers

Quantity:4
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 3 m x L 9 m
Shell/Head t:74 mm / 72 mm
Weight:46 t

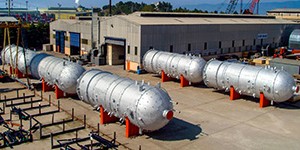

08_MOLECULAR-SIEVE-GAS-ADSORBERS

Molecular Sieve Gas Adsorbers

Quantity:8
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x L 16 m
Shell/Head t:129 mm / 66 mm
Weight:177 t

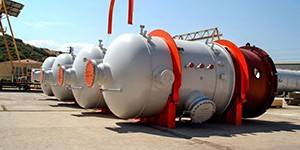

09_DRY-GAS-MERCURY-ADSORBERS

Dry Gas Mercury Adsorbers

Quantity:4
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 3 m x L 7 m
Shell/Head t:87 mm / 87 mm
Weight:50 t

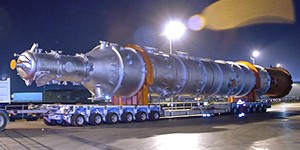

010_CONDENSATE-STABILISERS

Condensate Stabilisers

Quantity:2
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 2/3 m x L 39 m
Shell/Head t:15/24 mm / 26 mm
Weight:93 t

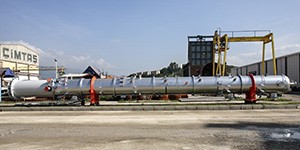

011_SOUR-WATER-STRIPPER-2

Sour Water Stripper

Quantity:1
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 2 m x L 22 m
Shell/Head t:15 mm / 15 mm
Weight:18 t

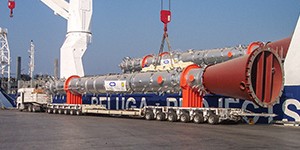

012_FEED-LIQUID-STRIPPERS

Feed Liquid Strippers

Quantity:2
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 2 m x L 35 m
Shell/Head t:16 - 29 mm / 15 - 29 mm
Weight:63 t

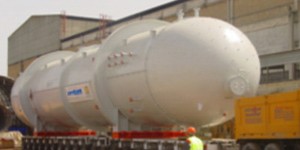

013_RICH-SOLVENT-FLASH-DRUMS

Rich Solvent Flash Drums

Quantity:2
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 5 m x L 29 m
Shell/Head t:25 mm / 23 mm
Weight:124 t

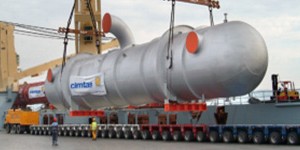

014_HYDROCARBON-FLARE-K.O.-DRUM

Hydrocarbon Flare K.O. Drum

Quantity:1
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 5 m x L 36 m
Shell/Head t:16 mm / 15 mm
Weight:114 t

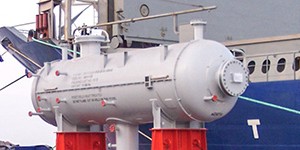

015_FEED-LIQUID-STRIPPER-FEED-DRUMS

Feed Liquid Stripper Feed Drums

Quantity:2
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 2 m x L 8 m
Shell/Head t:33 mm / 33 mm
Weight:19 t

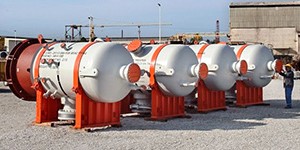

016_REGENERATION-COMPRESSOR-SUCTION-DRUMS

Regeneration Compressor Suction Drums

Quantity:4
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 2 m x L 5 m
Shell/Head t:44 mm / 43 mm
Weight:11 t

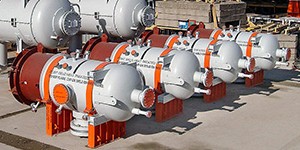

017_REGENERATION-COMPRESSOR

Regeneration Compressor Discharge Drums

Quantity:4
Design Code:ASME Sec. VIII Div.1
Dimensions:ID 2 m x L 5 m
Shell/Head t:38 mm / 37 mm
Weight:8 t

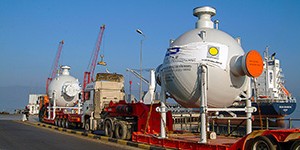

018_INJECTIONCOMPRESSOR2nd-STAGESUCTIONDRUMS

Injection Compressor 2nd Stage Suction Drums

Quantity:4
Design Code:ASME Sec. VIII Div.2
Dimensions:ID 4 m x H 7 m
Shell/Head t:102 mm
Weight:48 t
