Signature Projects
Pressure Vessels
Project Information
- Client: TÜPRAŞ
- End-User: TÜPRAŞ
- Projects: TÜPRAŞ İzmit Refinery Kerosene Treating & Caustic Neutralization Project
- Location: Turkey
- Design Code: ASME (Sec. VIII Div.1)
- Completion: 2010
Vessel Characteristics
- 7 Vessels / Columns
- Total weight of 672 t
- Range of Vessels:
- Weight: 29 t to 317 t
- Length: 7 m to 19 m (tt)
- Int. Diameter: 3 m to 7 m
- Wall Thickness: 26 mm to 52 mm
Materials
- SA 516 Gr.70N
Heaviest Vessel: Sweet Gas Knock Out Drums
(1 piece / 317 t / 7 m ID / 19 m Length / Wall Thickness = 52 mm)

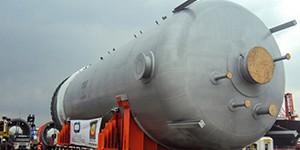

Oxidation Tower
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 7 m x L 19 m |
| Shell/Head t | : | 52 mm |
| Weight | : | 317 t |

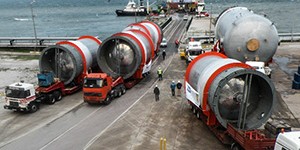

Clay Filter
| Quantity | : | 2 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 5 m x L 7 m |
| Shell/Head t | : | 36 mm |
| Weight | : | 82 t |
