1915 ÇANAKKALE BRIDGE

"The World's Longest Suspension Bridge"

20220104-0185-1-1

GENERAL LAYOUT

OVERALL

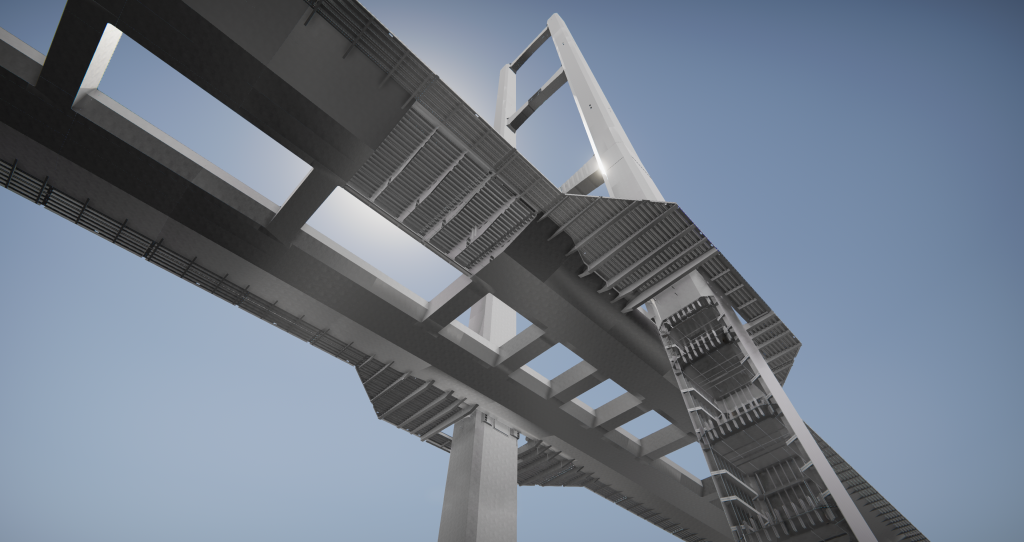

TOWER

GIRDER

Total Length:4,608 m
Main Span:2,023 m
Total Weight:105,000 t
Year Completed:2021

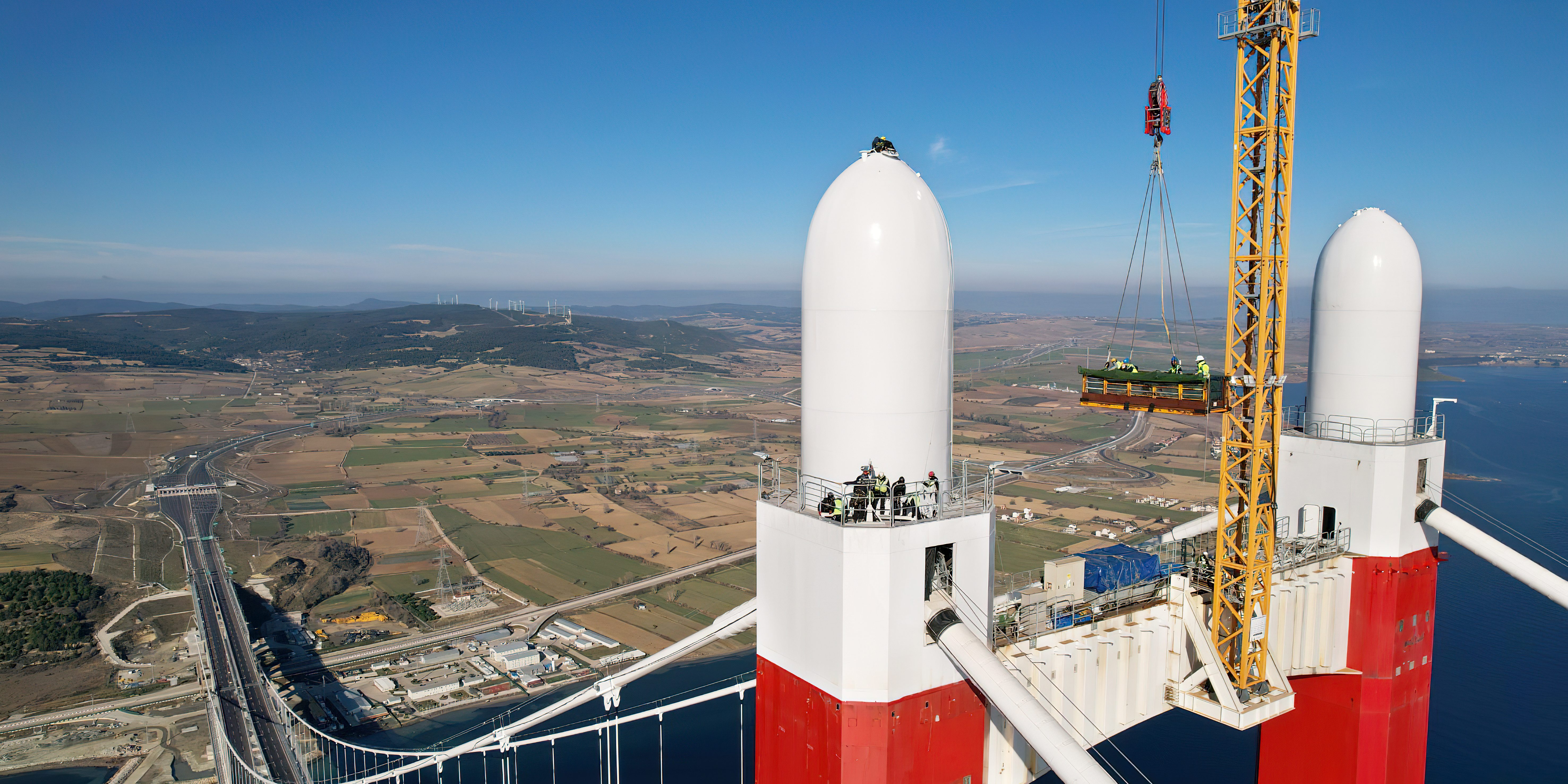

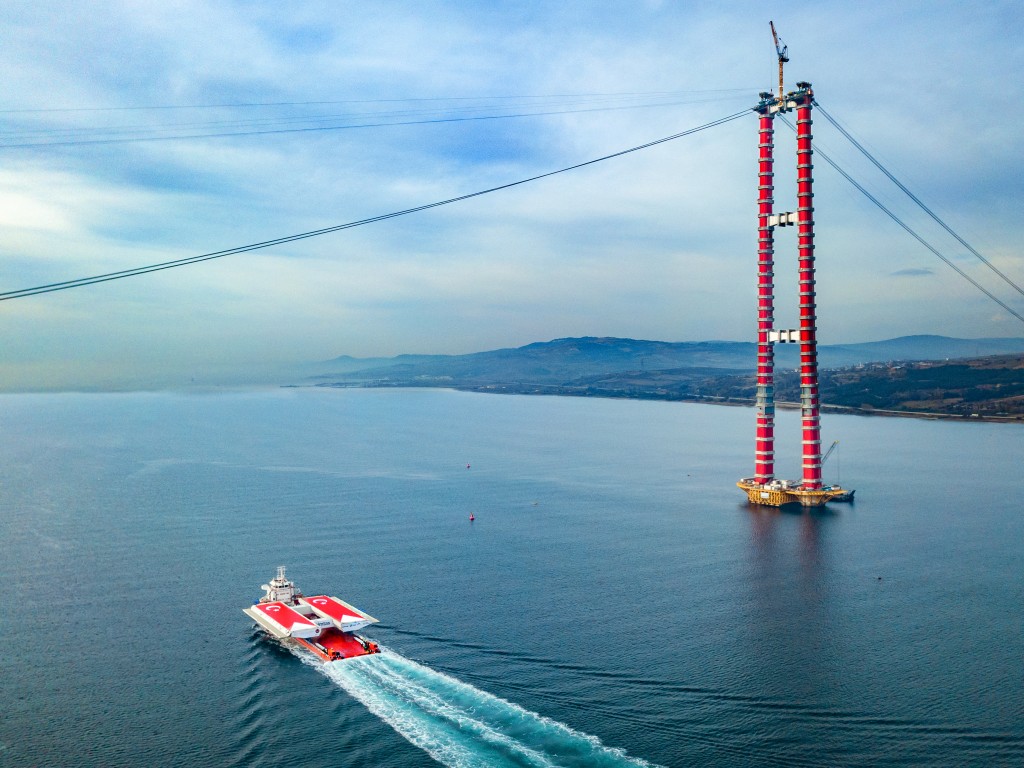

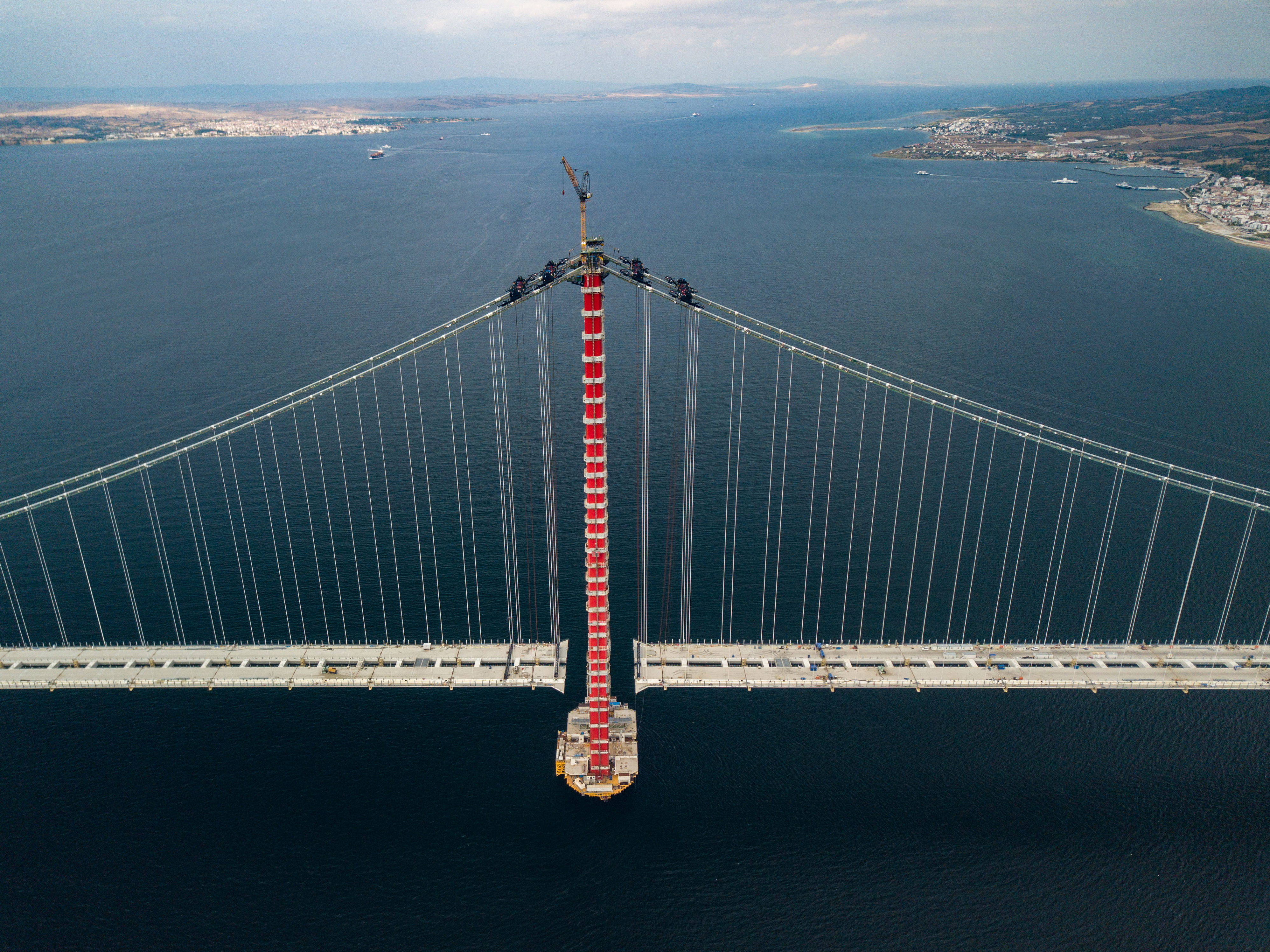

Tower Height:318 m
Number of Tower Blocks:146 pcs
Block Weight:200 - 831 t
Tower Total Weight:40.000 t

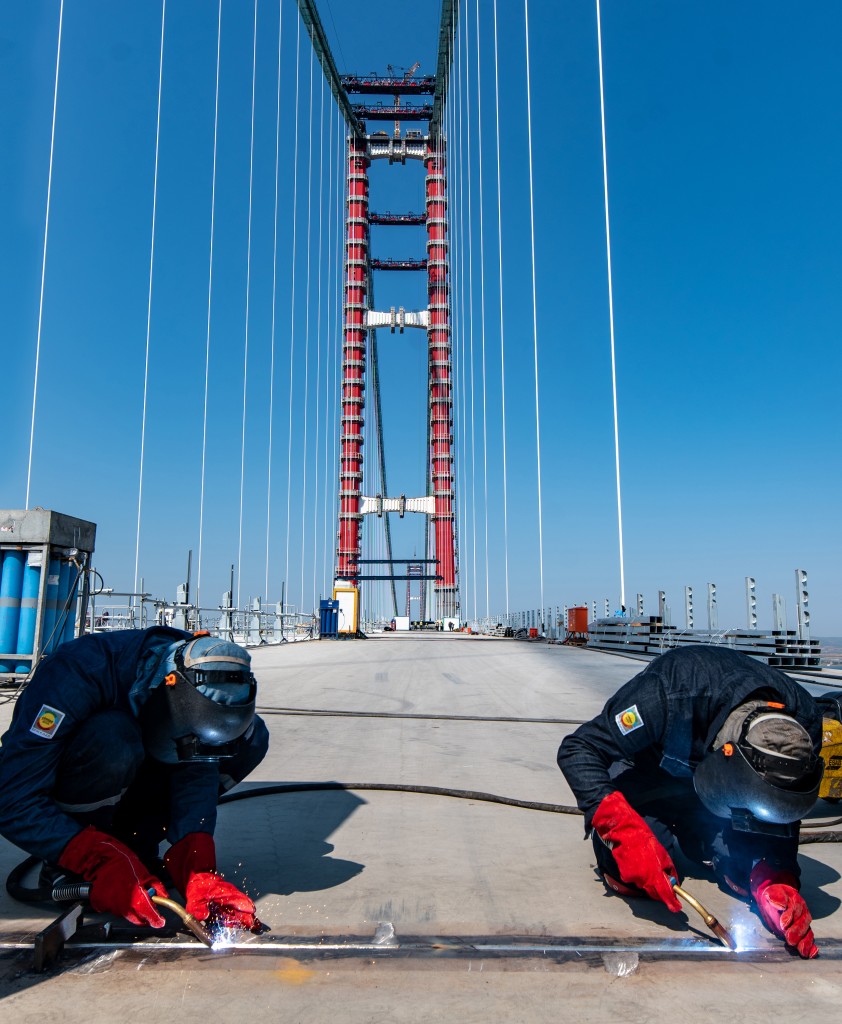

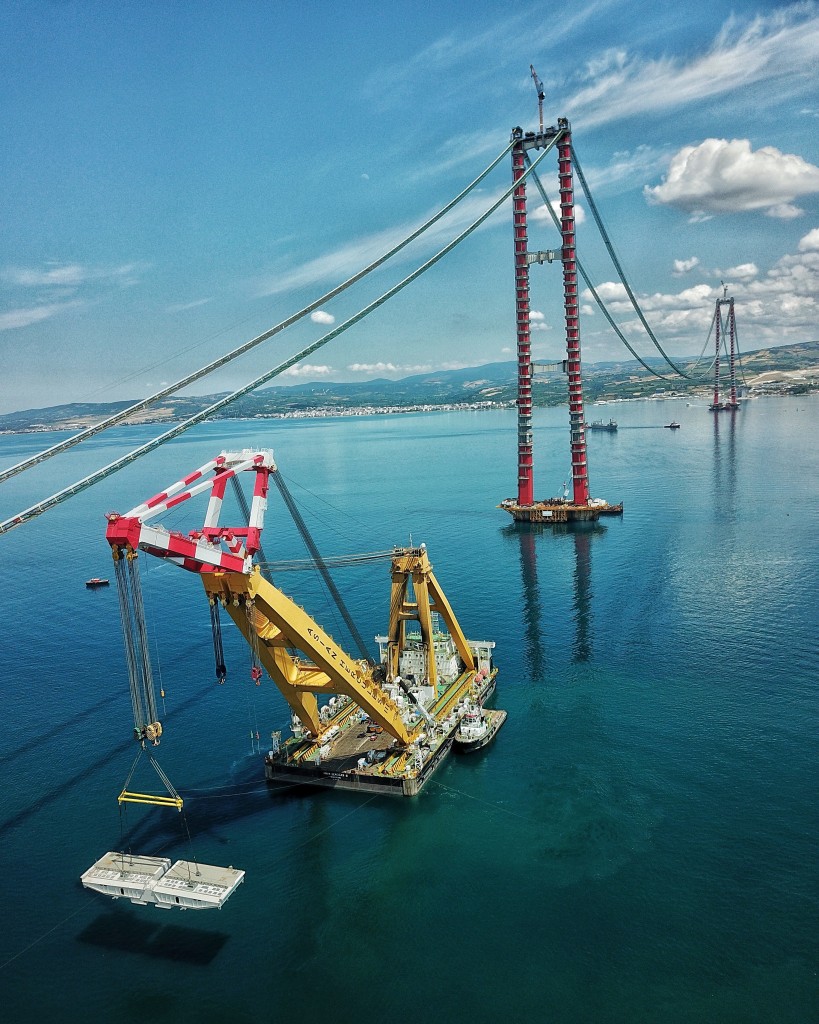

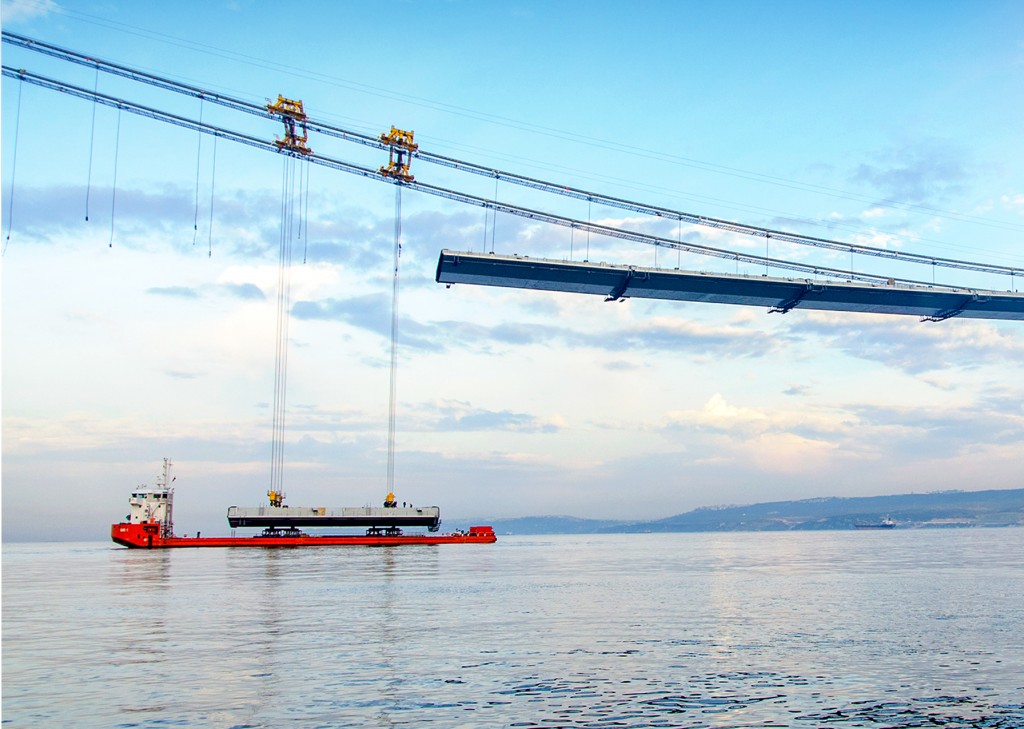

Girder Width:45 m
Number of Girder Blocks:153 pcs
Block Weight:286 - 747 t
Girder Total Weight:54.487 t

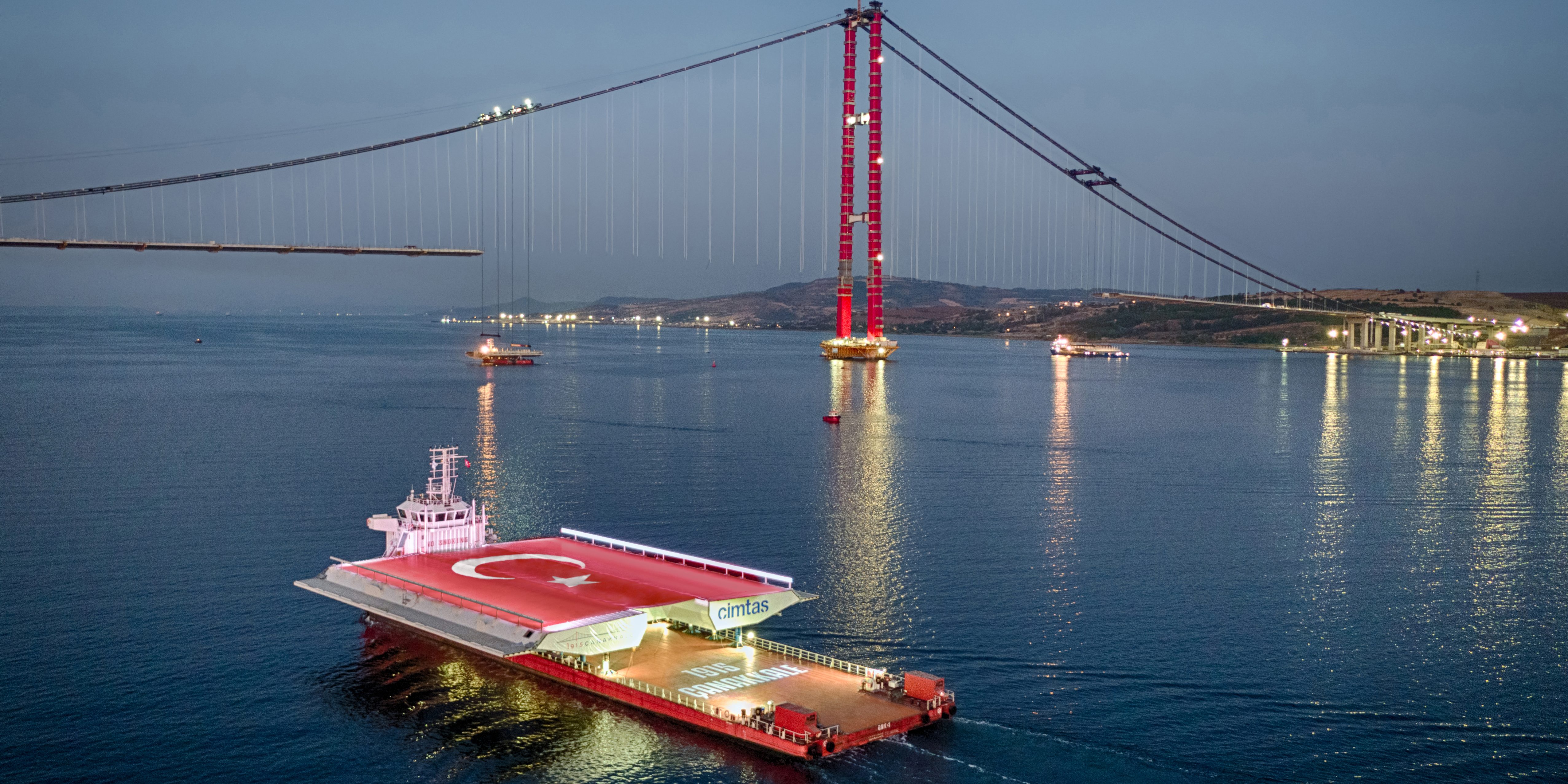

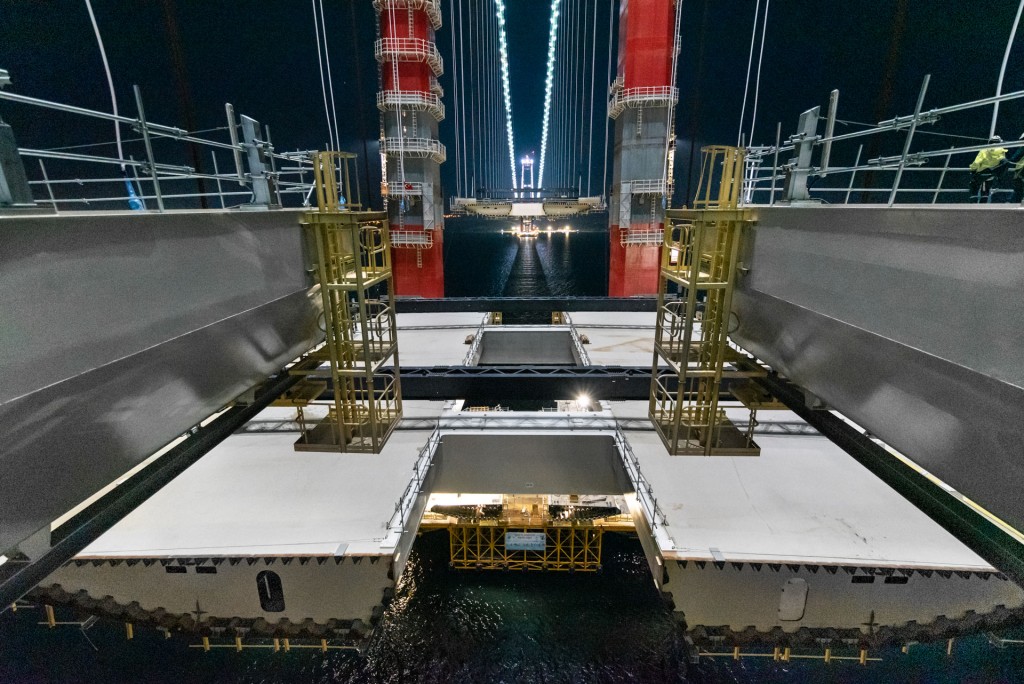

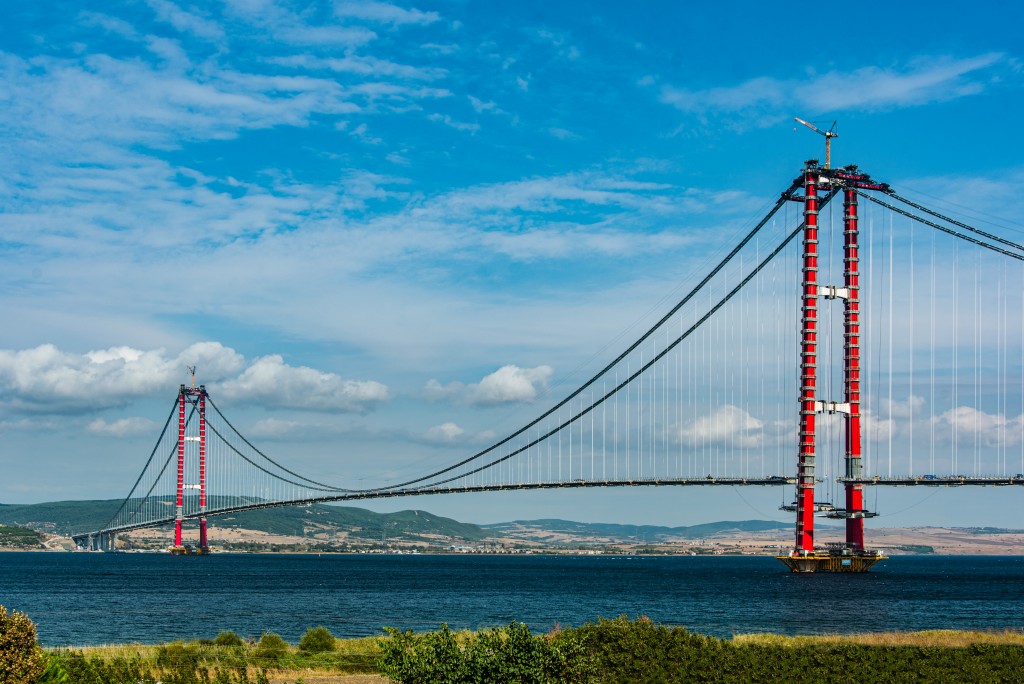

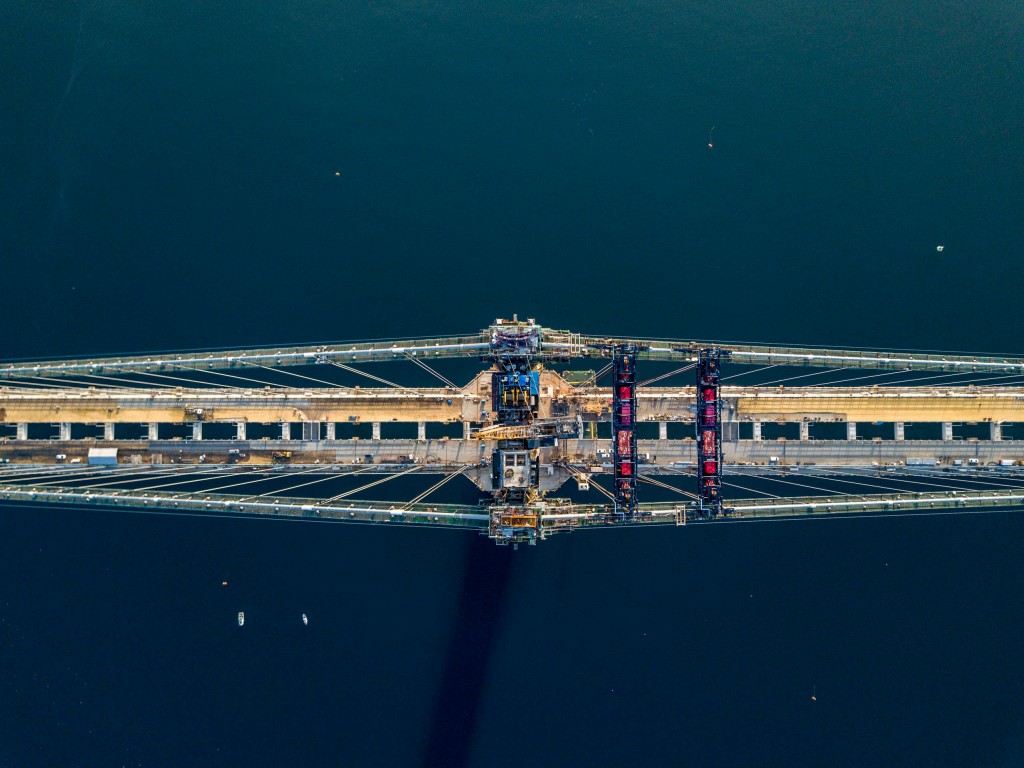

Last Deck 8-2 - 20210901-0277_D -R

DIVISION of WORKS

tower_panel

Çimtaş Steel (Gemlik)

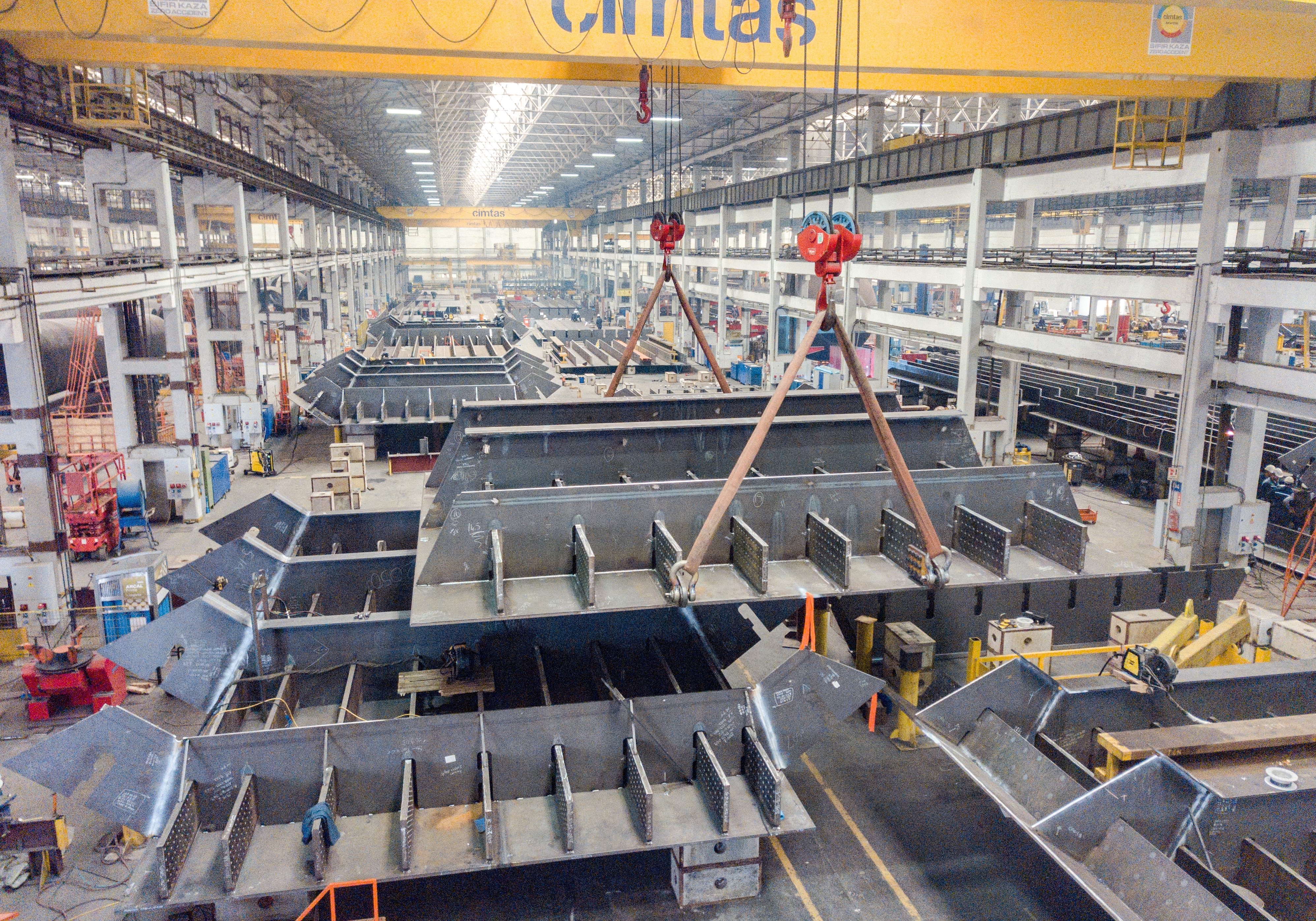

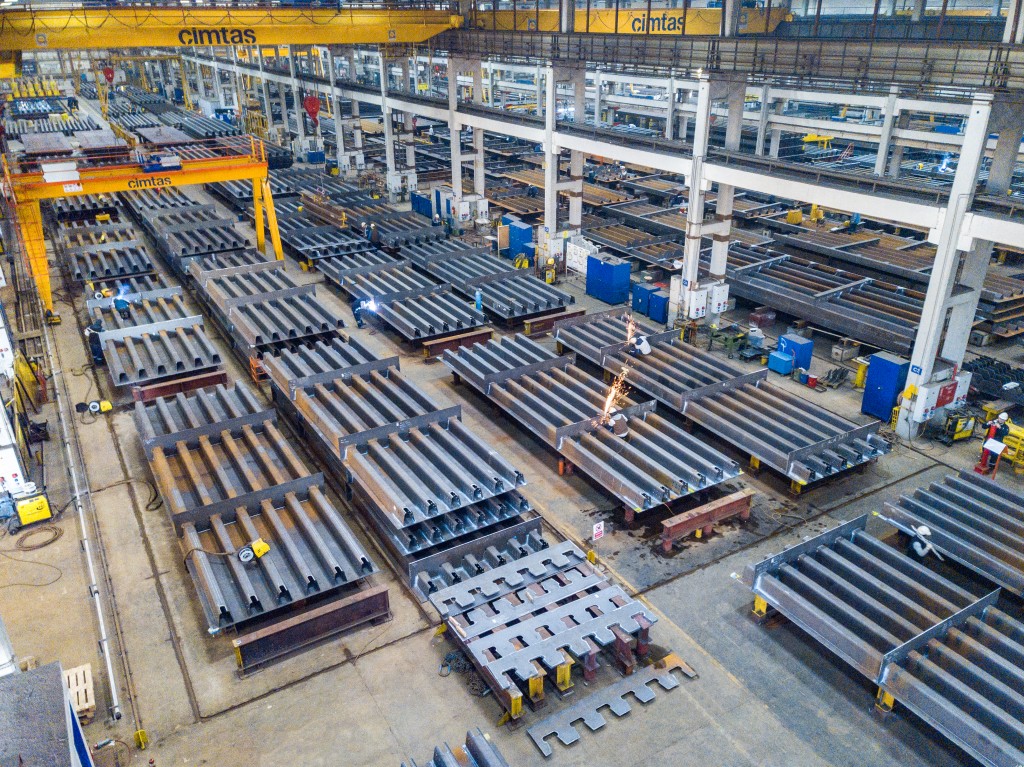

Tower Panels detailing, supply, fabrication and transportation to the Çimtaş Shipyard.

Girder (Deck) Panels detailing, supply, fabrication and transportation to the Çimtaş Shipyard.

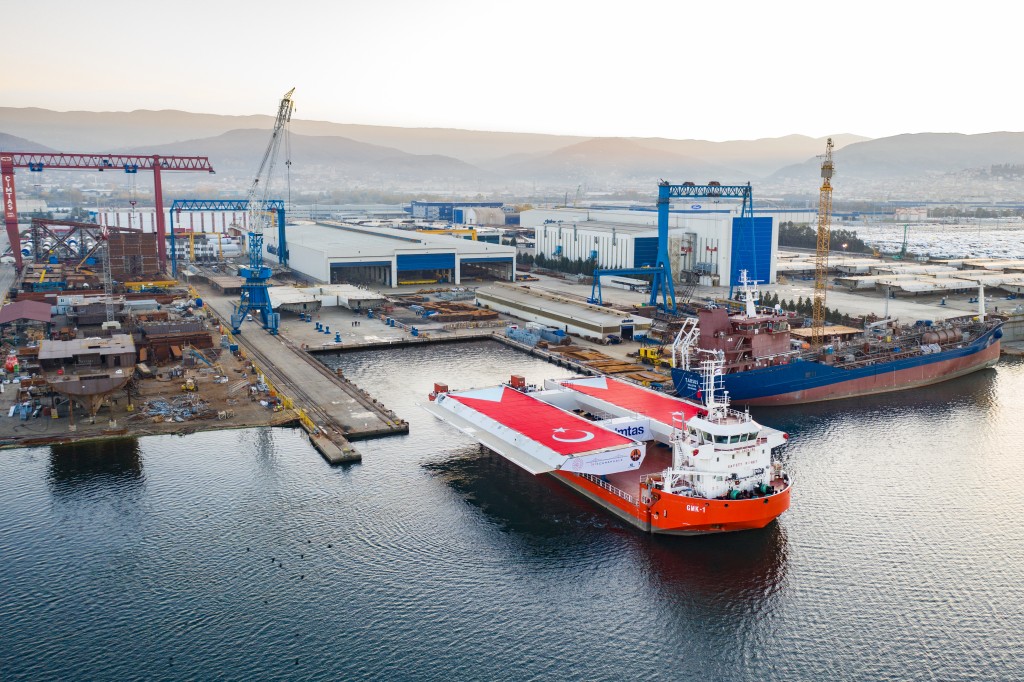

Çimtaş Shipyard (Gölcük)

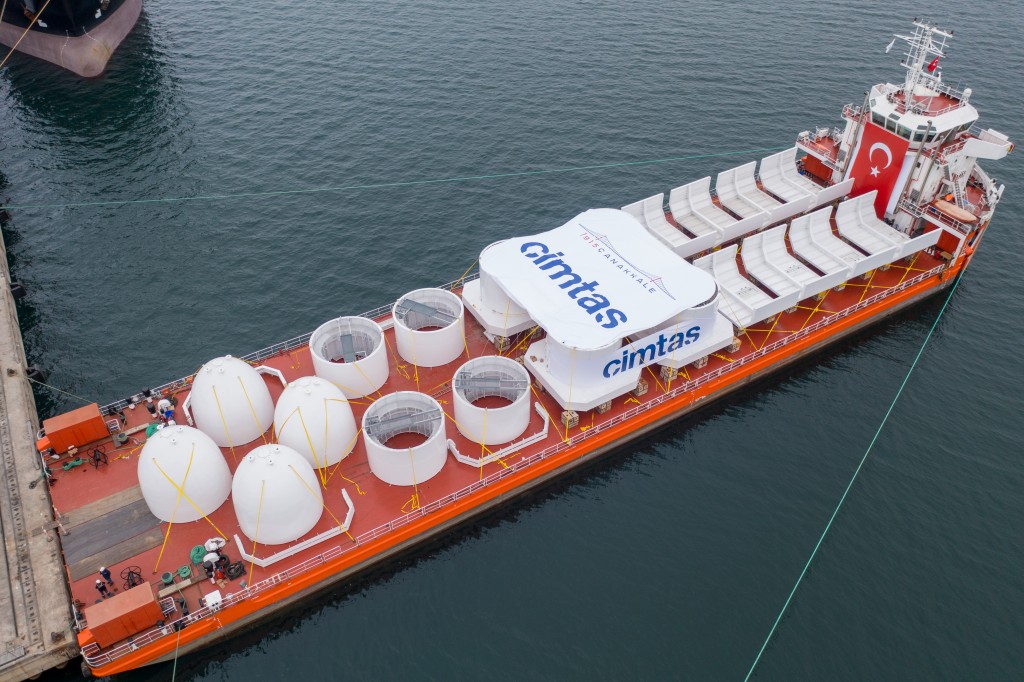

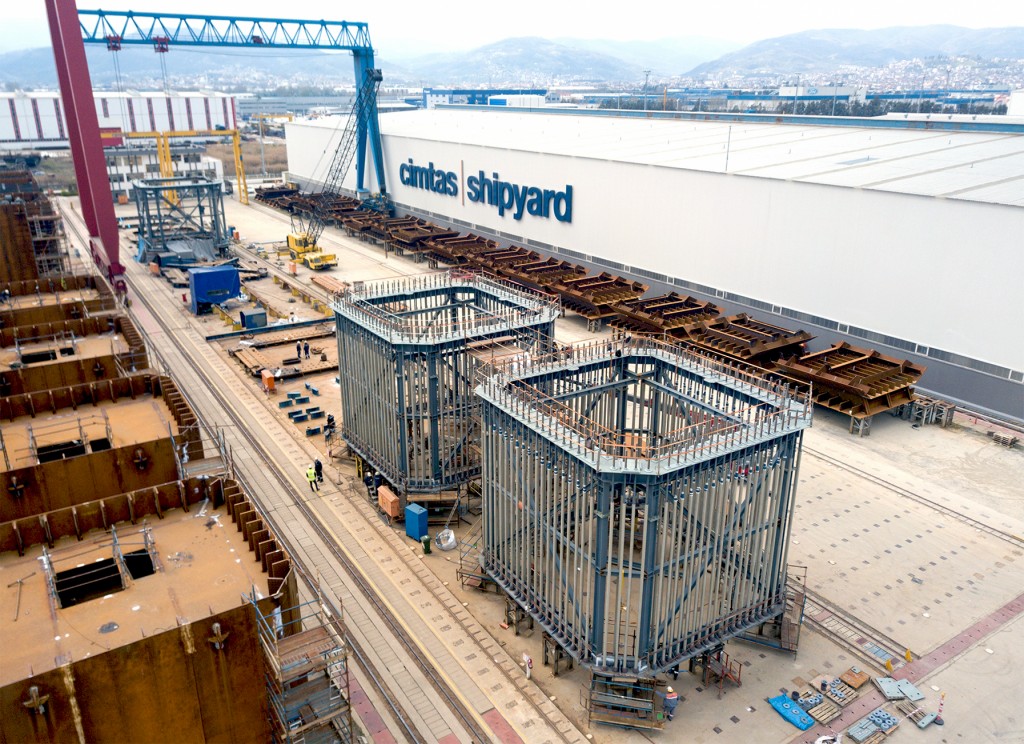

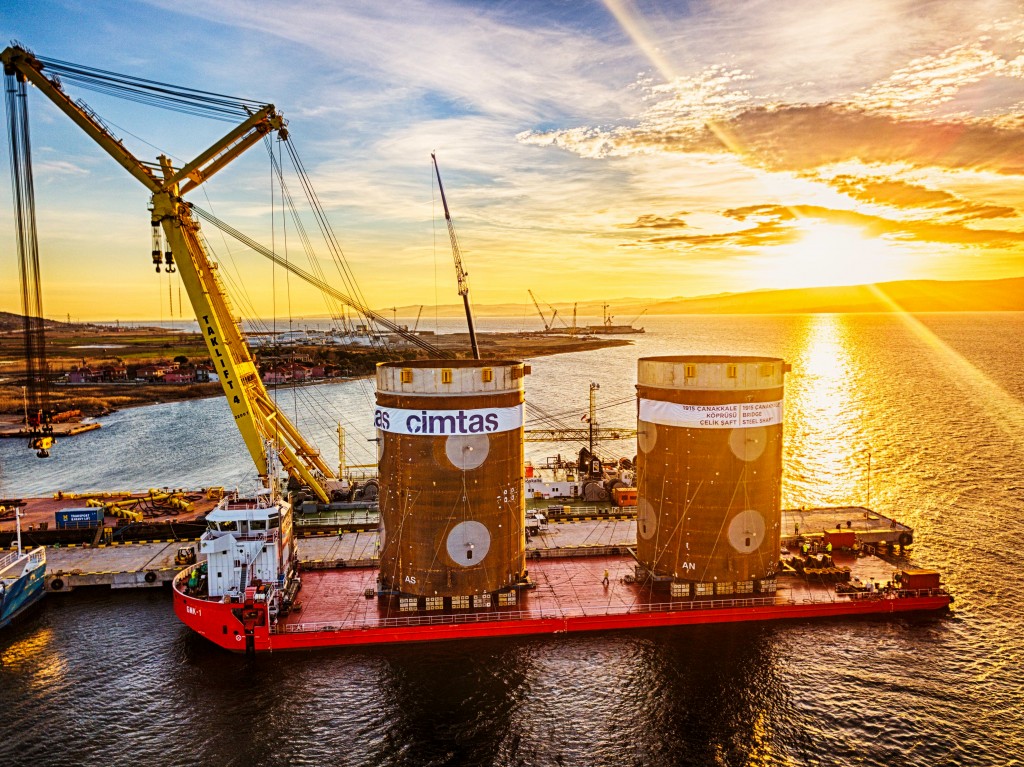

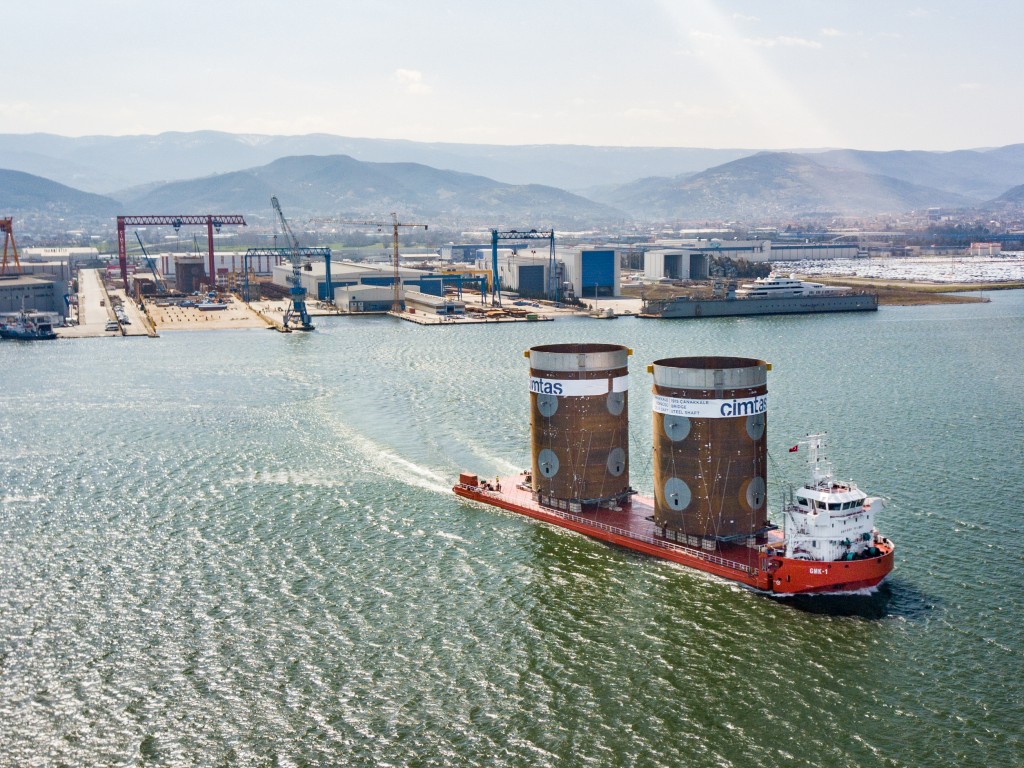

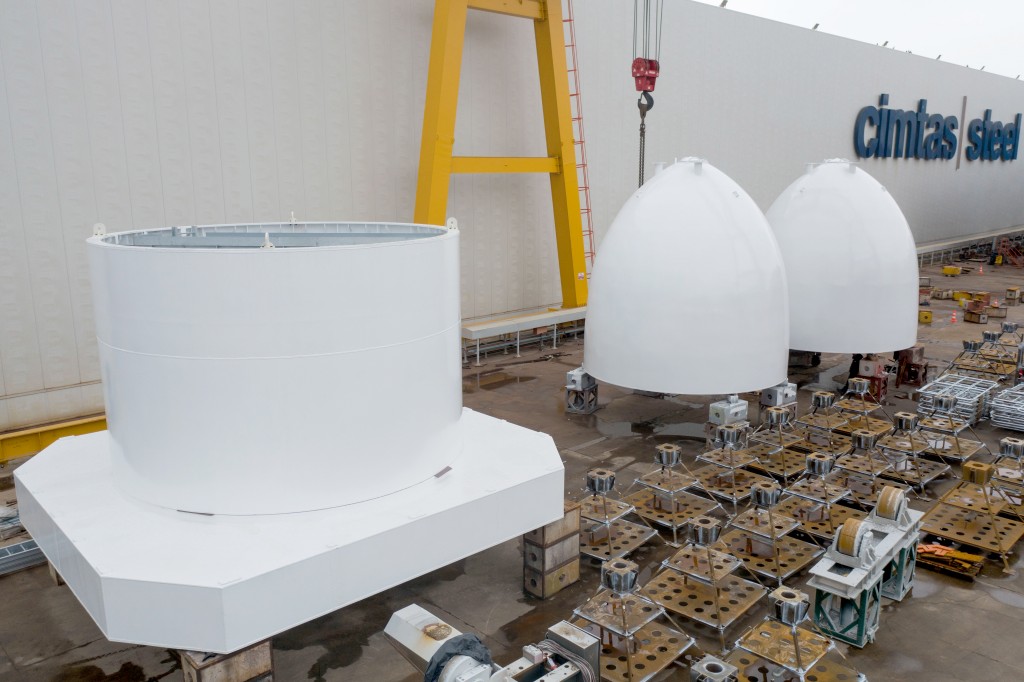

Detailing, supply, fabrication and delivery of Steel Shafts and Anchor Frames to the jobsite.

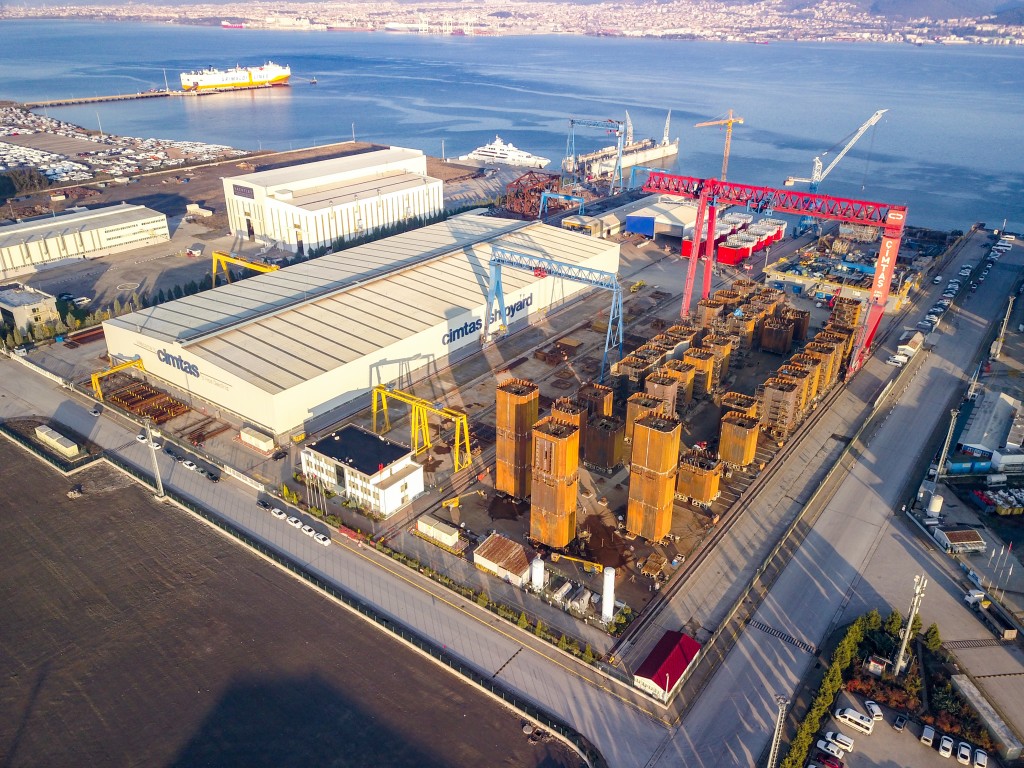

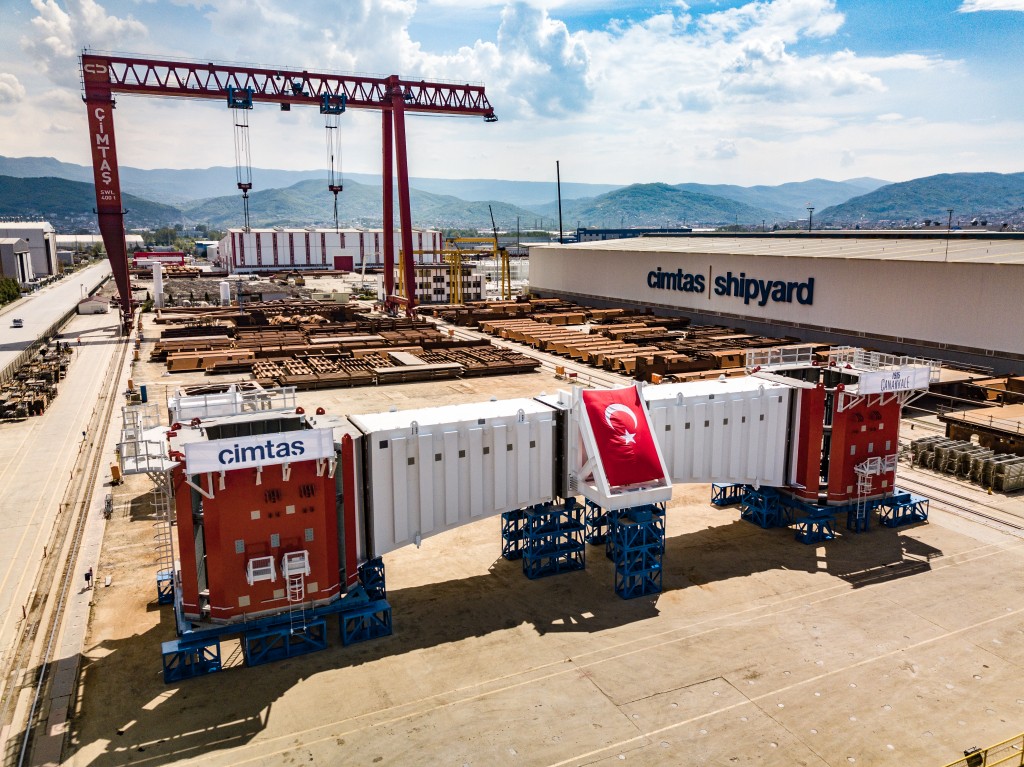

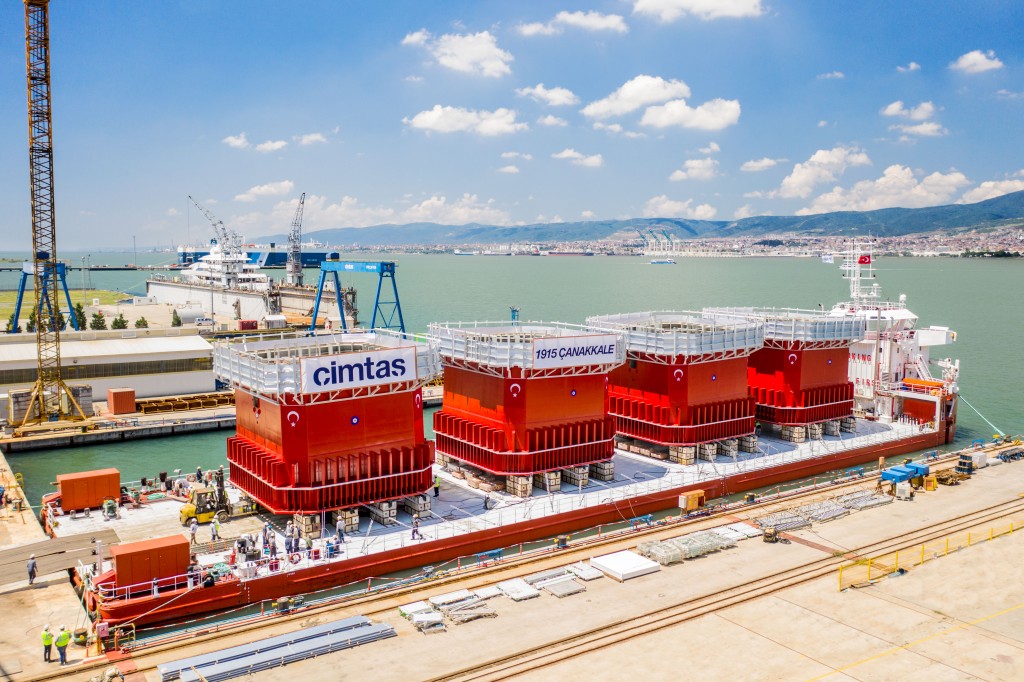

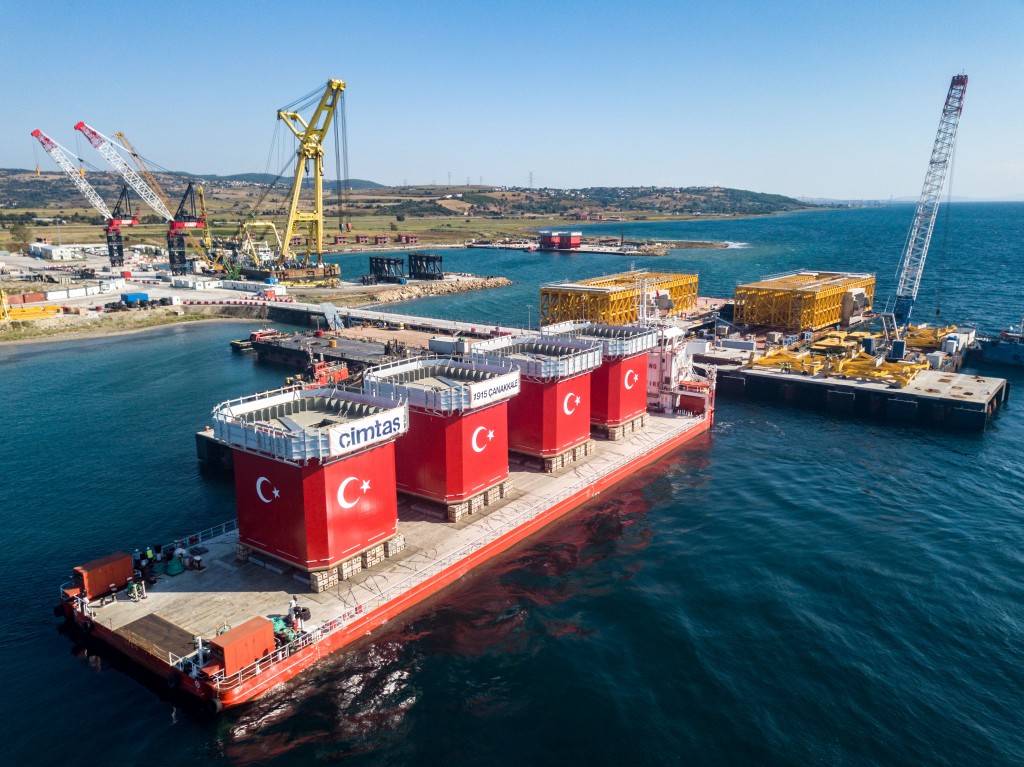

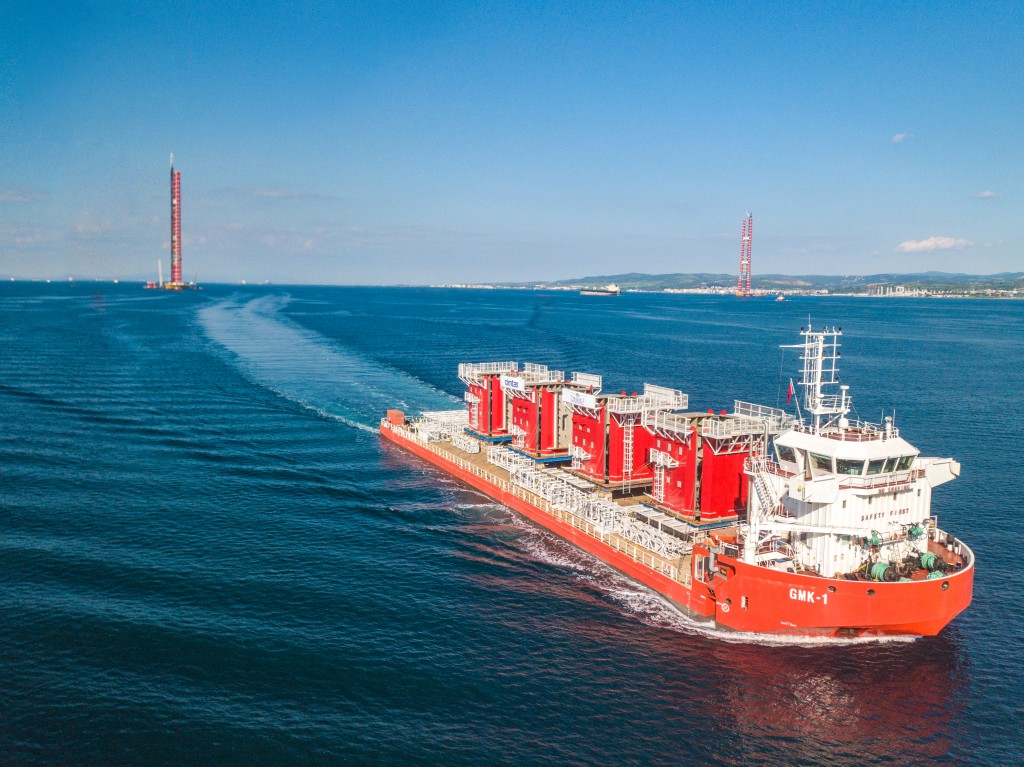

Ground assembly of Tower Panels into tower blocks, trial assembly and delivery to the jobsite.

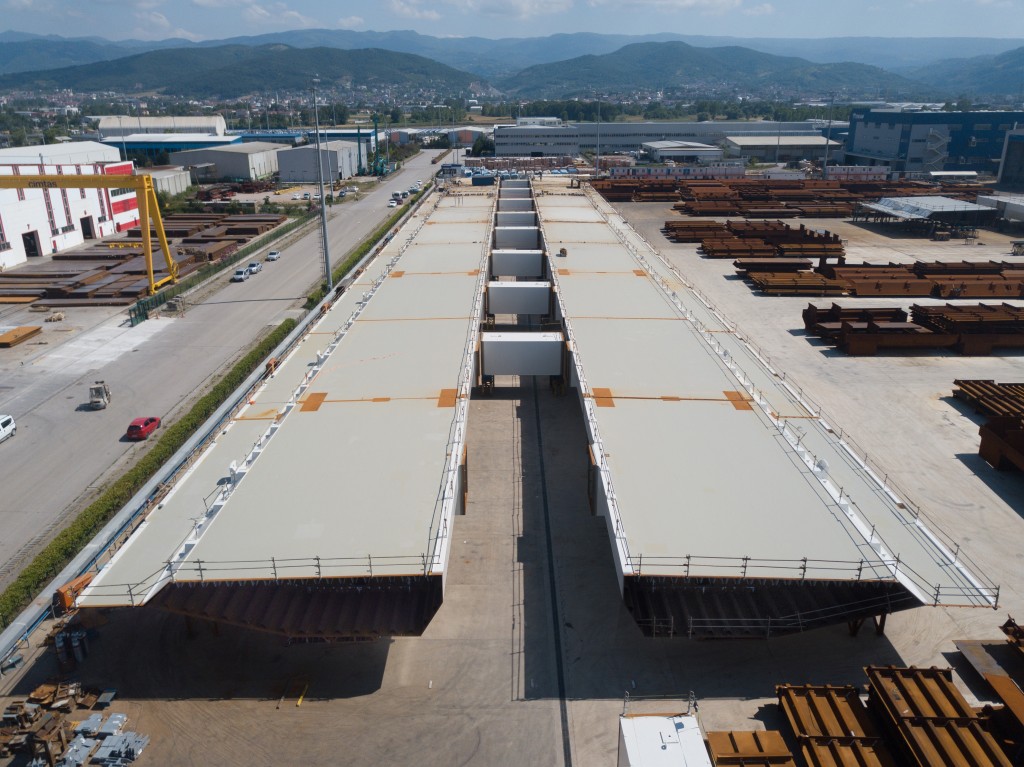

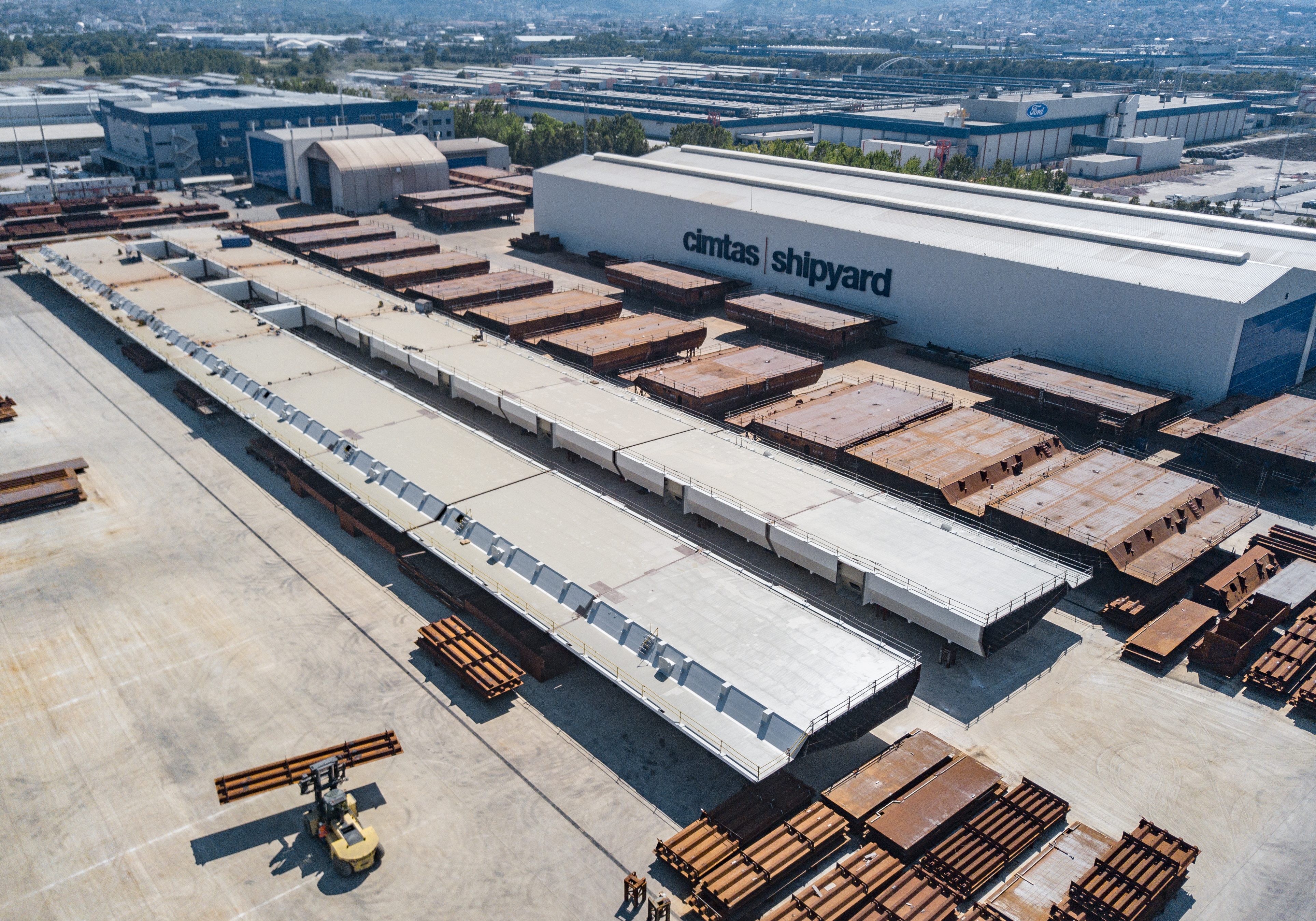

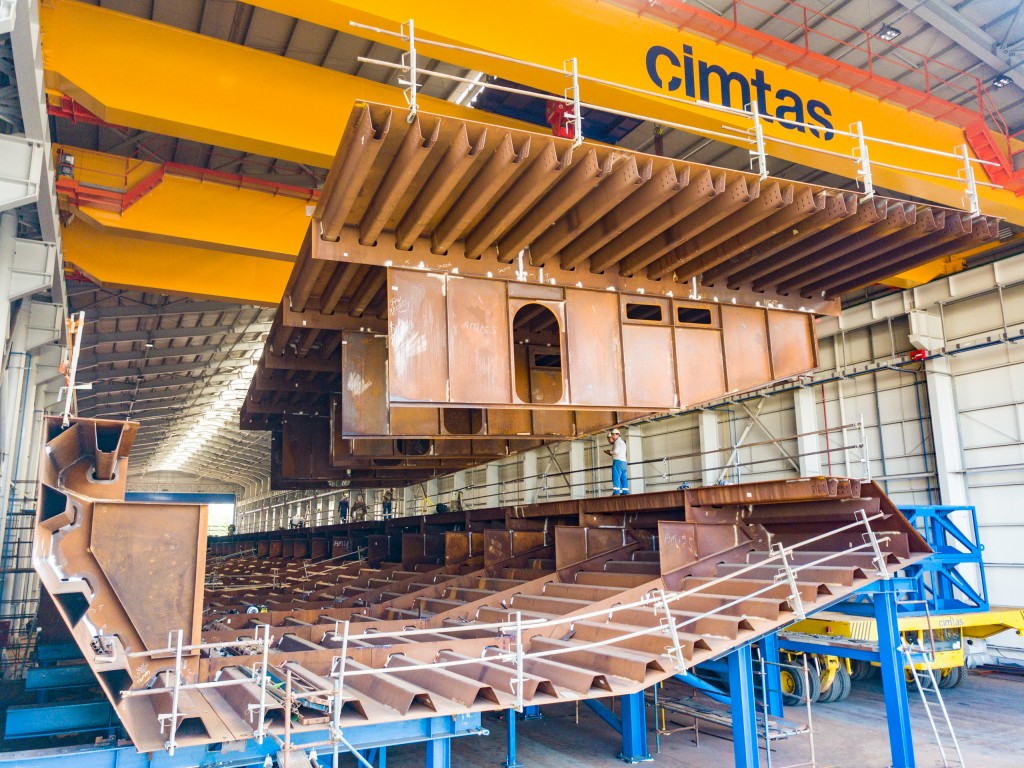

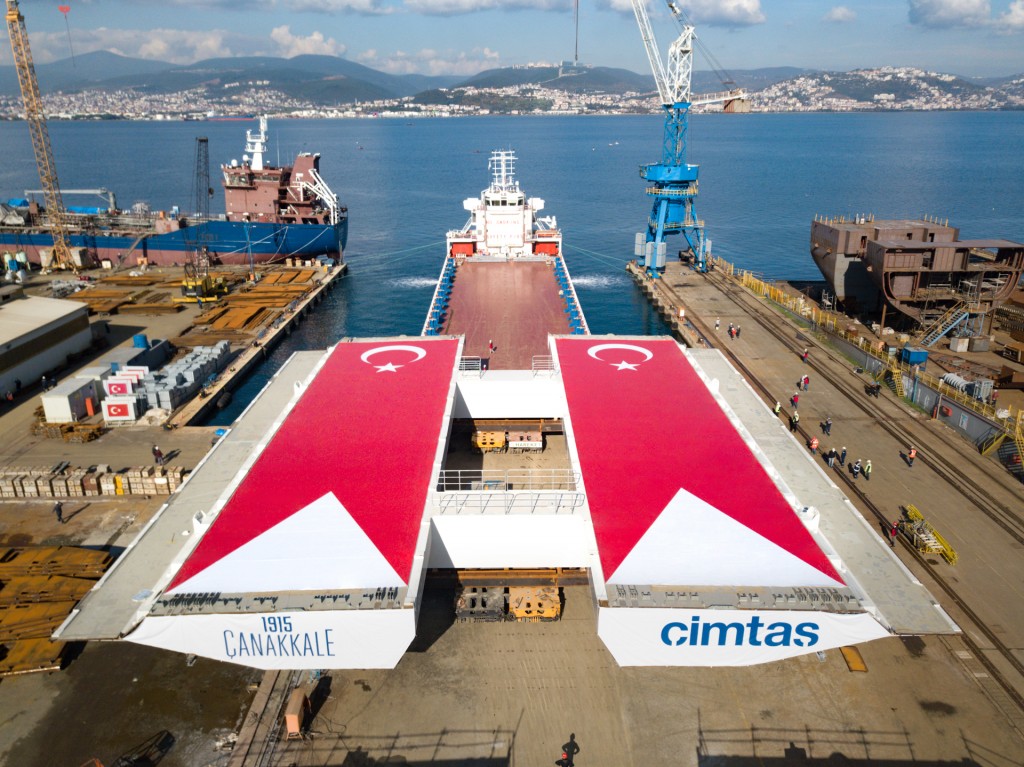

Ground assembly of Girder Panels into girder blocks, trial assembly and delivery to the Jobsite.

20200812-0308
CNK

Developer:
Çanakkale Otoyol ve Köprüsü İnşaaat Yatırım ve İşletme AŞ (ÇOK A.Ş.)
EPC / Bridge Contractor:
DL E&C, Limak, SK ecoplant, Yapı Merkezi Joint Venture (DLSY JV)
Bridge Fabricator:
Çimtaş Steel
Ground Assembler:
Çimtaş Shipyard
