Çimtaş | Spherical Storage Tanks

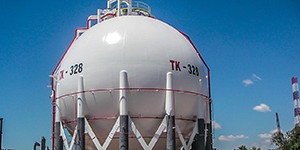

01_4,950-m3-SPHERICAL-TANK

4950 m³ Spherical Tank

Client	:	TÜPRAŞ
End User	:	TÜPRAŞ
Project	:	TÜPRAŞ Refinery Project / Türkiye
Completion	:	2012
Quantity	:	1
Design Code	:	AD2000-Merkblatt
Dimensions	:	ID 21 m x L 36
Thickness	:	55 mm
Total Weight	:	820 t

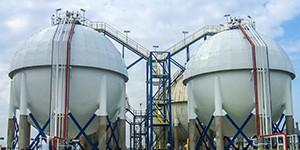

02_1,596-m3-PROPYLENE

1596 m³ Propylene Spherical Tank

Client	:	PETKİM
End User	:	PETKİM
Project	:	Aliağa Project / Türkiye
Completion	:	2008
Quantity	:	2
Design Code	:	ASME (Sec VIII Div 2)
Dimensions	:	ID 15 m
Thickness	:	41 mm
Total Weight	:	540 t

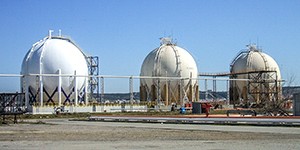

03_5,000-m3-PROPANE

5000 m³ Propane Spherical Tank

Client	:	TÜPRAŞ
End User	:	TÜPRAŞ
Project	:	Aliağa Project / Türkiye
Completion	:	2007
Quantity	:	3
Design Code	:	AD2000-Merkblatt
Dimensions	:	ID 21 m
Thickness	:	41 mm
Total Weight	:	1,872 t

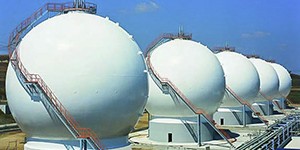

04_5,000-m3-PROPANE

5000 m³ Propane Spherical Tank

Client	:	BÜTANGAZ
End User	:	BÜTANGAZ
Project	:	Marmara Ereğlisi Project / Türkiye
Completion	:	2001
Quantity	:	5
Design Code	:	AD2000-Merkblatt
Dimensions	:	ID 21 m
Thickness	:	41 mm
Total Weight	:	2,510 t

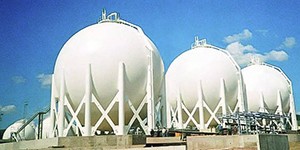

05_5,000-m3-PROPANE

5000 m³ Propane Spherical Tank

Client	:	İPRAGAZ
End User	:	İPRAGAZ
Project	:	Yarımca Project / Türkiye
Completion	:	2001
Quantity	:	3
Design Code	:	AD2000-Merkblatt
Dimensions	:	ID 21 m
Thickness	:	41 mm
Total Weight	:	1,872 t

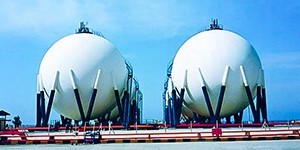

06_5,000-m3-LPG

5000 m³ LPG Spherical Tank

Client	:	AYGAZ
End User	:	AYGAZ
Project	:	LPG Terminal Project / Türkiye
Completion	:	2004
Quantity	:	4
Design Code	:	AD2000-Merkblatt
Dimensions	:	ID 21 m
Thickness	:	26 mm
Total Weight	:	1,592 t

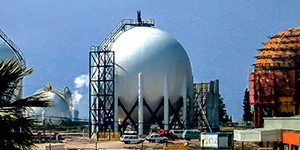

07_4,000-m3-PROPANE

4000 m³ Propane Spherical Tank

Client	:	OCAKGAZ
End User	:	OCAKGAZ
Project	:	Aliağa Project / Türkiye
Completion	:	2001
Quantity	:	1
Design Code	:	AD2000-Merkblatt
Dimensions	:	ID 20 m
Thickness	:	38 mm
Total Weight	:	494 t

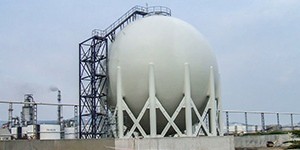

08_5,000-m3-LPG

5000 m³ LPG Spherical Tank

Client	:	TÜPGAZ
End User	:	TÜPGAZ
Project	:	Yarımca Project / Türkiye
Completion	:	2001
Quantity	:	1
Design Code	:	AD2000-Merkblatt
Dimensions	:	ID 21 m
Thickness	:	41 mm
Total Weight	:	617 t
