Pressure Vessels
Project Information
- Client: UOP
- End-User: Various
- Projects: Various
- Design Code: ASME (Sec.VIII Div.1 & Div.2) PED97/23
- Completion: 2012
Vessel Characteristics
- 180 Vessels
- Total weight of 4250 t
- Range of Vessels:
- Weight: 3 t to 60 t
- Length: 3 m to 29 m
- Int. Diameter: 2 m to 4 m
- Wall Thickness: 9 mm to 135 mm
Materials
- SA 516 Gr.70N
- SA 516 Gr.60N
- P355NH
- SA 662 GR6

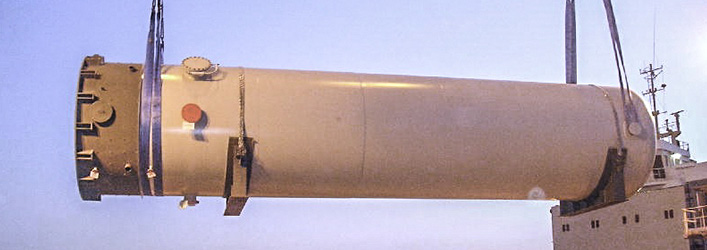

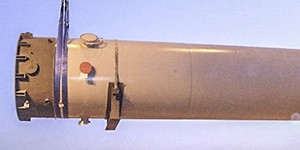

Off Gas Drums
| Quantity | : | 2+1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 4 m x L 26-18 m |
| Shell/Head t | : | 14-9 mm / 14-9 mm |
| Weight | : | 41-20 t |

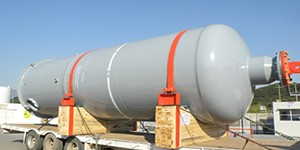

Absorber
| Quantity | : | 4 |
| Design Code | : | ASME Sec. VIII Div.1 + PED 97/23 |
| Dimensions | : | ID 3 m x L10 m |
| Shell t | : | 44 mm |
| Weight | : | 32 t |

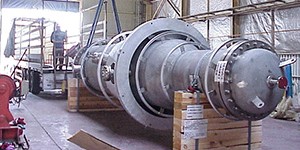

Regeneration
| Quantity | : | 1 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 2 m x L 8 m |
| Shell t | : | 14 mm |
| Weight | : | 13 t |

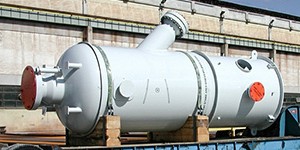

Guard Bed Vessels
| Quantity | : | 2 |
| Design Code | : | ASME Sec. VIII Div.1 |
| Dimensions | : | ID 2 m x L 8 m |
| Shell t | : | 120 mm / 135 mm |
| Weight | : | 40 t |
